The Hidden Features Behind Consistent Paper Tube Production
When evaluating a paper tube making machine, many buyers focus on production speed and tube size range. However, experienced manufacturers often pay closer attention to the machine structure and control systems behind the production process. The PS-4250C CNC Paper Tube Machine is equipped with several key features designed to improve production consistency, cutting accuracy, and operational stability. These features may not always be visible from the outside, but they can significantly impact daily production performance.
Four Winding Heads Design
The PS-4250C utilizes a four-head winding structure.
Compared with conventional two-head winding machines, a four-head configuration provides better support and stability during tube formation. This is particularly beneficial when producing longer tubes, thicker wall tubes, or operating at higher production speeds. More winding support helps improve tube roundness and overall production stability.
Encoder Pulse Fixed Length Control
The machine adopts Encoder Pulse Fixed Length technology combined with feedforward compensation control. This system helps ensure that cutting lengths remain consistent even when the machine speed changes during production.
Without this feature, tube lengths may vary from batch to batch whenever production speed fluctuates. For manufacturers supplying tubes to industries that require dimensional consistency, length variation can lead to rejection and additional production costs.
Servo Synchronous Tracking System
One of the most important features of the PS-4250C is the Servo Synchronous Tracking Cutting System. The cutting table is driven by a precision ball screw and high-performance servo motor, allowing the cutting unit to move synchronously with the paper tube during operation.
Without a synchronous tracking system, the tube may continue moving while the cutter is attempting to cut, resulting in inaccurate lengths, rough cutting surfaces, or material waste. Servo tracking helps maintain cleaner and more consistent cutting results, especially during continuous production.

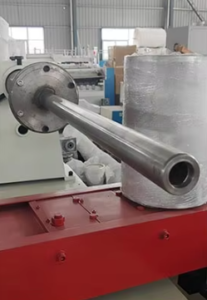

Flange Tight Core Fixing System
The machine adopts a Flange Tight core fixing method.
A stable mandrel fixing structure is essential during winding. If the core fixing system is not secure, vibration or slight movement may occur during production, affecting tube concentricity and dimensional consistency. The flange-tight structure helps maintain stable tube forming conditions throughout the production cycle.
In paper tube manufacturing, production quality is not determined by speed alone. Features such as servo tracking, encoder fixed-length control, four-head winding support, and flange-tight fixing systems play an important role in helping manufacturers achieve more stable production, better product consistency, and reduced material waste.
