SpanishAutomatic Paper Tube Making Machine (Four Heads)
The Automatic Paper Tube Making Machine (Four Heads) is an advanced, high-performance machine designed for the efficient production of paper tubes and cores. With four independent mandrels, this machine offers enhanced productivity, producing multiple tubes simultaneously and making it highly suitable for high-demand industries like packaging, textiles, and manufacturing. This machine ensures high precision, reliability, and automation to meet large-scale production needs.

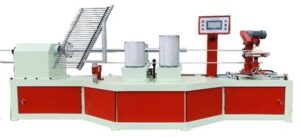

PS-4250B CNC Paper Tube Machine
Technical Parameters | |
Ply qty of paper | 3-21 ply |
Diameter of core | 40mm–250mm |
Thickness of core | 1mm–12mm |
Winding head | Four heads double belts |
Cutting method | Single round knife cutting,without resistance |
Glue adding method | Single-sided /double-sided gluing |
Length-control-method | Photoelectric fixed length |
Synchronous control | pneumatic |
Belt diagonal | electric |
Power | 15KW |
PLC controller | Taiwan/Taida |
Human-computer-interface | Color touch screen |
Input Power | 380V three-phase four-wire (other voltage customization) |
Number of operators | 1-2 workers |
Core winding speed | 3-30m/min |
Size | 4000mm×2000mm×1950mm |
Total Weight | 2500kg |

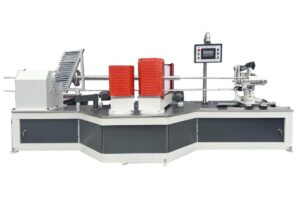

PS-4250C CNC Paper Core Making Machine
Technical Parameters | |
Ply qty of paper | 3-21 ply |
Diameter of core | 30mm–200mm |
Thickness of core | 1mm–15mm |
Winding head | Four heads double belts |
Cutting method | Single servo round knife cutting without resistance |
Glue adding method | Single-sided /double-sided gluing |
Length-control-method | Encoder pulse fixed length |
Synchronous control | Servo synchronous tracking cutting |
Belt diagonal | electric |
Host swing angle | electric |
Paper tape automatically supplied with lubrication | Automatic |
Power | 15KW |
PLC controller | Taiwan/Taida |
Human-computer-interface | Color touch screen |
Input Power | 380V three-phase four-wire (other voltage customization) |
Number of operators | 1-2 workers |
Core winding speed | 3-30m/min |
Size | 4500mm×2000mm×1950mm |
Total Weight | 3200kg |

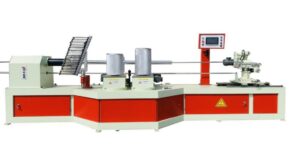

PS-4250C CNC Paper Core Making Machine (Plus)
Technical Parameters | |
Ply qty of paper | 3-21 ply |
Diameter of core | 30mm–250mm |
Thickness of core | 1mm–15mm |
Winding head | Four heads double belts |
Cutting method | Single servo round knife cutting without resistance |
Glue adding method | Single-sided /double-sided gluing |
Length-control-method | Encoder pulse fixed length |
Synchronous control | Servo synchronous tracking cutting |
Belt diagonal | electric |
Host swing angle | electric |
Paper tape automatically supplied with lubrication | Automatic |
Power | 15KW |
PLC controller | Taiwan/Taida |
Human-computer-interface | Color touch screen |
Input Power | 380V three-phase four-wire (other voltage customization) |
Number of operators | 1-2 workers |
Core winding speed | 3-30m/min |
Size | 4500mm×2000mm×1950mm |
Total Weight | 3200kg |

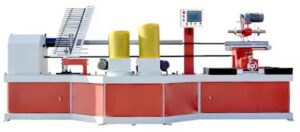

PS-4250D CNC paper tube machine
Technical Parameters | |
Ply qty of paper | 3-21 ply |
Diameter of core | 30mm–200mm |
Thickness of core | 1mm–15mm |
Winding head | Four heads double belts |
Cutting method | Double servo round knife cutting without resistance |
Glue adding method | Single-sided /double-sided gluing |
Length-control-method | Encoder pulse fixed length |
Synchronous control | Servo synchronous tracking cutting |
Belt diagonal | electric |
Host swing angle | electric |
Paper tape automatically supplied with lubrication | Automatic |
Power | 15KW |
PLC controller | Taiwan/Taida |
Human-computer-interface | Color touch screen |
Input Power | 380V three-phase four-wire (other voltage customization) |
Number of operators | 1-2 workers |
Core winding speed | 3-30m/min |
Size | 4500mm×2000mm×1950mm |
Total Weight | 3200kg |

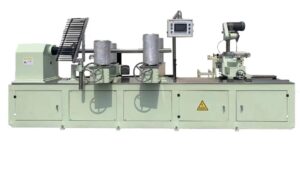

PS-4250S CNC paper tube machine
Technical Parameters | |
Ply qty of paper | 3-21 ply |
Diameter of core | 30mm–200mm |
Thickness of core | 1mm–15mm |
Winding head | Four heads double belts |
Cutting method | Single servo round knife cutting,without resistance |
Glue adding method | Single-sided /double-sided gluing |
Length-control-method | Encoder pulse fixed length |
Synchronous control | Servo synchronous tracking cutting |
Belt diagonal | electric |
Host swing angle | electric |
Paper tape automatically supplied with lubrication | Automatic |
Power | 22KW |
PLC controller | Taiwan/Taida |
Human-computer-interface | Color touch screen |
Input Power | 380V three-phase four-wire (other voltage customization) |
Number of operators | 1-2 workers |
Core winding speed | 3-30m/min |
Size | 4500mm×2000mm×1950mm |
Total Weight | 4200kg |
