Introduction and Precautions of Machine Parts

1. Active parts should be oiled frequently, and it is best to oil them before each startup.
2. During startup, there should be someone in front of the machine to watch over it, and pay special attention to the temperature setting, which is generally set at 20-70 degrees. If the displayed temperature is abnormal or exceeds the range too much, it must be powered off for maintenance. It should not exceed 90 degrees at most, otherwise the belt will burn or easily cause a fire.
3. Fire extinguishers or other fire extinguishing devices must be placed in the workshop, and there must be exhaust fans. It is best to install environmental protection equipment to exhaust the odor of printing ink.
4. Professionals should check whether the various parts of the machine are operating normally and the wear and tear, generally once a week

Printing Product Parameter

1. The printed products require flatness and products with a thickness of less than 5mm.
2. The material requirements are not high. Basically all materials can be printed.
3. The maximum width of the size is 550mm, the minimum is unlimited, the length is unlimited, and the effective printing area is within 550X550mm.

Technical Parameter

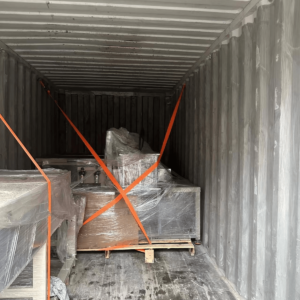

Packaging Size Delivery

Equipment Composition and Material Weight

1. In order to increase printing speed and reduce noise, the head and upper plate of the printing machine are made of aluminum alloy.
2. The frame part is welded with channel steel, which is firmly fixed and does not deform.
3. Conveyor belt material: canvas rubber

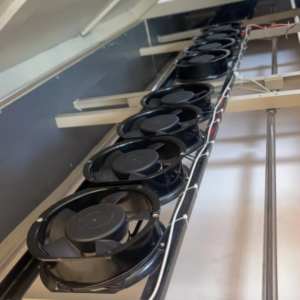

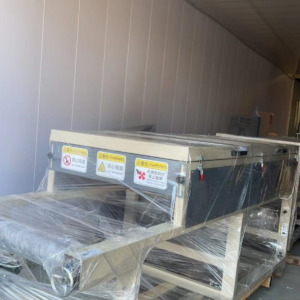

4. Drying box material: iron, with fan and heating tube inside
5. Human-machine interface, touch screen
6. Overall weight of the machine: 800kg
7. The overall size of the screen printer is about: frame height 700mm, frame width 850mm, main machine weight 208kg, length 2015mm, width 1250mm, height 1400mm.
8. The conveyor table + drying box in the machine is about: 140kg*2, the drying rack is 1800mm long and 850mm wide, and the drying + tail conveyor weighs 180kg, 2380mm long, 850mm wide, and 970mm high.

Work Flow

1. Plate loading onto the machine
2. Feeding of printing materials
3. Adjustment of print size positioning
4. Alignment of printing position
5. Test printing for accuracy verification
6. Automatic start of production
7. Conveying of printed products
8. Drying and final output of finished products

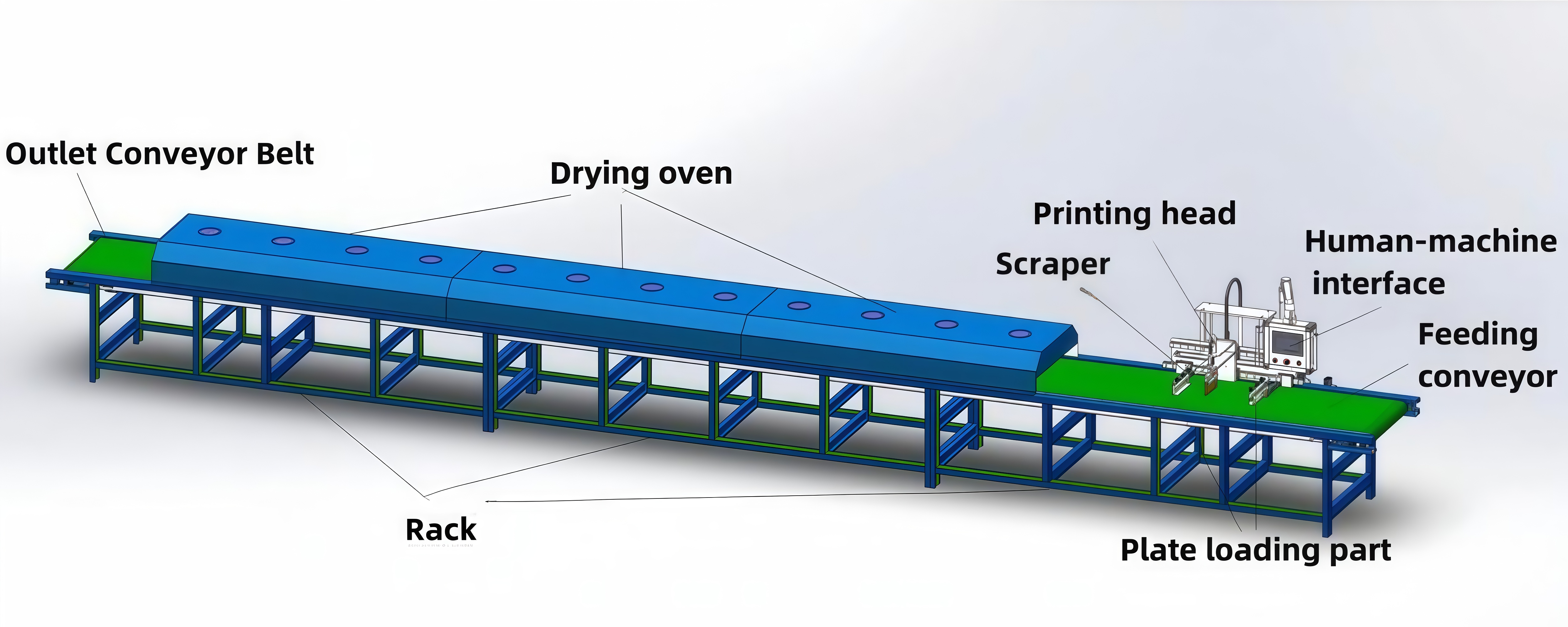

Machine Image

Product Display
