SpanishHoneycomb Paper Core Production Line
The Honeycomb Paper Core Production Line is designed for producing hexagonal honeycomb paper cores. It integrates processes such as paper unwinding, gluing, compounding, drying, and cutting, enabling continuous production of lightweight and high-strength paper cores. These cores are widely used in packaging, furniture, construction, and automotive industries as an eco-friendly and sustainable material.
Honeycomb Core Paper Machine
Technical Specification | |
Model | HCM-2000 |
Max width of paper | 2000mm |
Cell sizes | 4-25mm or customized |
Cell sizes inline | 2 groups |
Cutting thickness | 8-100mm |
Cutting speed | 500shoots/min |
Cutting accuracy | ±0.1mm |
Cutting method | horizontal cutting |
Paper layers | 6 layers |
Jumbo roll weight | 2 tons |
Jumbo roll core diameter | 3″/4″ or multifunction |
Glue | PVA /Latex /Starch |
Glue coating way | rolling way |
Paper roll holder | Mechanical |
Door block function | available |
Heating | by electronica |
Paper | 90gsm above |
Production capacity | 8 tons above |
Overall size | L 24 × D 3.5 × H 2.3m |
Weight | 20 ton |
Operators | 2-3 persons |
Air compressor capacity | 1m³ output |
Power | 75kw |

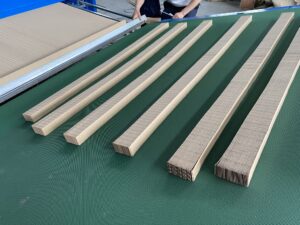

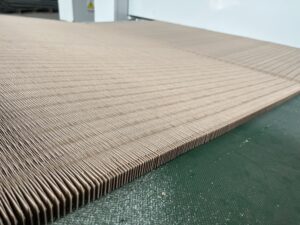

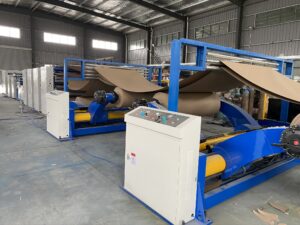

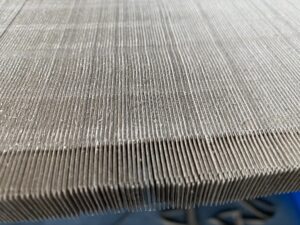

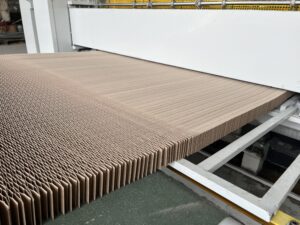

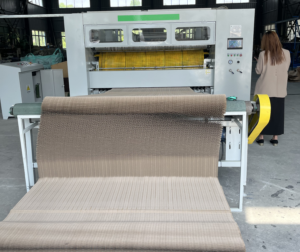

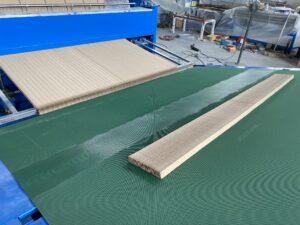

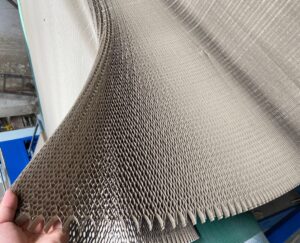

Detail Images
|
|
|
|
|
|
|
|
